输送柴油泵KCB483.3铜轮防爆齿轮泵助力锦州宏泰化工
发布时间:2014-12-30 9:54:32 点击次数:

      KCB483.3齿轮泵流量29m3/h(483.3L/min),压力0.36Mpa,吸入真空高度3米,效率42%,口径70,配用电机7.5kw-4或者11kw-4.

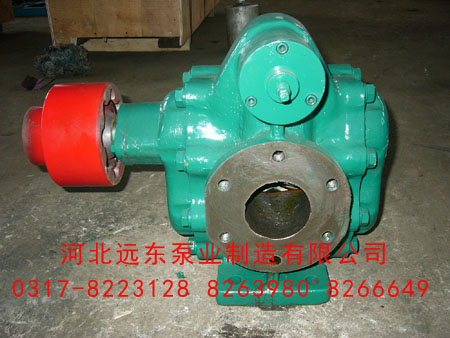

      KCB483.3齿轮泵产品图片

      输送柴油油使用铜轮防止在输送过程中,金属摩擦产生火花,发生燃烧.所以在输送汽柴油工况,我公司推荐客户使用铜轮齿轮泵.

        KCB齿轮油泵在输油系统中可用作传输、增压泵;KCB gear oil pump in the oil system can be used as a transport, booster pump;

   在燃油系统中可用作输送、加压、喷射的燃油泵;In the fuel system can be used as a transport, pressure, jet fuel pump;

   在一切工业领域中,均可作润滑油泵用。In all industrial areas, can be used as lubricating oil pump.

   KCB齿轮泵主要有齿轮、轴、泵体、安全阀、轴端密封所组成。齿轮经热处理有较高的硬度和强度,与轴一同安装在可更换的轴套内运转。泵内全部零件的润滑均在泵工作时利用输出介质而自动达到。KCB gear pump are mainly gear, shaft, pump body, valve, shaft end seal. Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve. In all parts of the lubrication pump are pump work automatically to achieve using the output media.

   泵内有设计合理的泄油和回油槽,是齿轮在工作中承受的扭矩力最小,因此轴承负荷小,磨损小,泵效率高。Pump is the drainage and back into the groove of reasonable design, is a gear in the work under the minimum torque force, so the bearing load is small, wear small, pump with high efficiency.

   泵设有安全阀作为超载保护,安全阀的全回流压力为泵额定排除压力的1.5倍,也可在允许排出压力范围内根据实际需要另外调整。但注意本安全阀不能作减压阀的长期工作,需要时可在管路上另行安装。从主轴外伸端向泵看,为顺时针旋转。Pump is equipped with safety valve as overload protection, the total reflux pressure relief valve is rated pump out pressure of 1.5 times, also can allow discharge pressure range according to actual needs and adjust. But note that this cannot be a long-term work pressure reducing valve, relief valve can be installed in the piping shall be separately when necessary. To pump from the main shaft overhang end to see, for clockwise.





   流量:1.1m3/h-600m3/h压力:0.28MPa--2.5MPa  Traffic: 1.1 m3 / h - 600 m3 / h pressure: 0.28 MPa, 2.5 MPa

   主要用于油田、油库、港口、码头、船舶等大流量输油,卸油!Mainly used in oil fields, oil depot, ports, docks, ship big flow like oil, oil unloading!

   应用范围:KCB/2CY型齿轮输油泵适用于输送粘度在300c.s.t以下的各种油类,如原油、柴油、润滑油、动植物油等。配用铜齿轮可输送低闪点液体,如汽油、苯等。介质温度不超过70℃,耐高温油泵的使用温度不超过300℃。本泵身带有安全阀,超载时起安全作用。轴封有骨架油封、机械密封、填料密封三种型式,订货注明。KCB齿轮润滑泵主要用于各种机械设备中的润滑系统中输送润滑油,适用于输送粘度在10oE(75c.s.t)以下,温度在300℃以下的具有润滑性的油料,不锈钢齿轮泵可输送食用油料、饮料等。轴封有骨架油封、机械密封、填料密封三种型式.Scope of application: KCB type / 2 cy gear oil pump is suitable for conveying viscosity at 300 c. S.t under various oil, such as crude oil, diesel oil, lubricating oil, animal and plant oil. With copper gear can handle liquid low flash point, such as gasoline, benzene, etc. Medium temperature does not exceed 70 ℃, the use of high temperature resistant oil pump temperature does not exceed 300 ℃. When the pump body with a safety valve, overloading security role. Shaft seal skeleton oil seal, mechanical seal, packing three type, indicate the order. KCB gear lubrication pump is mainly used for all kinds of mechanical equipment of conveying lubricating oil in the lubricating system, suitable for conveying viscosity in 10 oe (below 75 c. S.t), the temperature is below 300 ℃ with lubrication oil, stainless steel pump can transport edible oil, beverage and so on. Shaft seal skeleton oil seal, mechanical seal, packing three types.

   KCB齿轮泵安装说明:1、安装泵的地点应足够宽敞,以方便检修工作。2、泵安装的好坏,对泵的平稳运行和使用寿命有很重要的影响,所以安装校正工作必须仔细地进行,不得草率行事。3、泵吸入管的安装高度、长度和管径应满足计算值,力求简短,减少不必要的损失(如弯头等);并保证泵在工作时,不超过其允许汽蚀余量。4、吸入和排出管路应该有支架。泵不允许承受管路的负荷。KCB gear pump installation instructions: 1, the location of the installation of pump should be spacious enough, to facilitate maintenance and repair work. The stand or fall of 2, pump installation, for the smooth running of the pump and service life have very important influence, so the installation calibration work must be carried out carefully and must not be too hasty. 3, installation height of pump suction pipe, the length and diameter should satisfy the calculated value, to short, reduce unnecessary losses, such as elbow, etc.); And ensure the pump at work, no more than the allowed NPSH. 4, suction and discharge line should be a support. Pump are not allowed to bear load of pipeline.
